Reguladores

Siemens Micromaster 440 6SE440-2AB13-7AA1

SKU: 7007

En Stock

Seleccionar Condición

Used

Excl. IVA: €160,00 (1 disponible)

IVA incluido: €193,60

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Información de Garantía

Importante: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Períodos de Garantía por Condición

Nueva 12 meses

Reacondicionado DOA

Usado DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Descripción

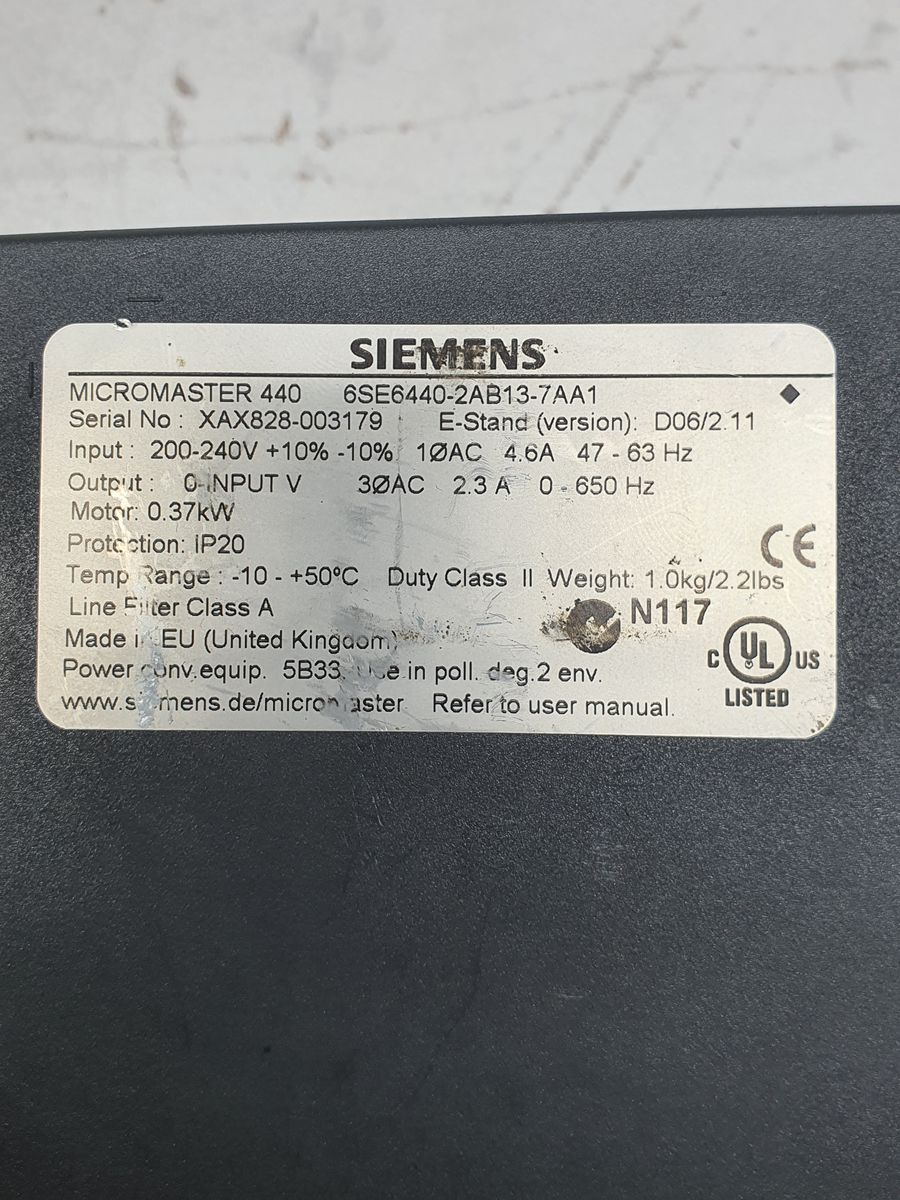

Siemens MICROMASTER 440 Specification Parameter Details Manufacturer Siemens Product Series MICROMASTER 440 Model Number 6SE6440-2AB13-7AA1 Serial Number XAX828-003179 Software / E-Stand Version D06 / 2.11 Input Voltage 200–240 VAC Input Voltage Tolerance +10% / −10% Input Phase 1 Phase AC Input Current 4.6 A Input Frequency 47–63 Hz Output Voltage 0–Input Voltage Output Phase 3 Phase AC Output Current 2.3 A Output Frequency 0–650 Hz Motor Power Rating 0.37 kW Protection Class IP20 Duty Class Class II Ambient Temperature Range −10 °C to +50 °C Line Filter Class Class A Weight 1.0 kg (2.2 lbs) Power Conversion Equipment 5B33 Pollution Degree Degree 2 Enclosure / Environment Industrial Country of Manufacture United Kingdom (EU) Compliance Marks CE, cULus Listed (N117) Documentation Refer to User Manual

Specifications – Micromaster 440 6SE440-2AB13-7AA1

Parameter	Specification
Manufacturer	Siemens
Product Series	MICROMASTER 440
Model Number	6SE6440-2AB13-7AA1
Serial Number	XAX828-003179
Software / E-Stand Version	D06 / 2.11
Input Voltage	200–240 VAC
Input Voltage Tolerance	+10% / −10%
Input Phase	1 Phase AC
Input Current	4.6 A
Input Frequency	47–63 Hz
Output Voltage	0–Input Voltage
Output Phase	3 Phase AC
Output Current	2.3 A
Output Frequency	0–650 Hz
Motor Power Rating	0.37 kW
Protection Class	IP20
Duty Class	Class II
Ambient Temperature Range	−10 °C to +50 °C
Line Filter Class	Class A
Weight	1.0 kg (2.2 lbs)
Power Conversion Equipment	5B33
Pollution Degree	Degree 2
Enclosure / Environment	Industrial
Country of Manufacture	United Kingdom (EU)
Compliance Marks	CE, cULus Listed (N117)
Documentation	Refer to User Manual
