Actuadores Neumáticos

Swagelok Whitey 151SR / SS-41GXS2-51S

SKU: 4007

Agotado

Precio a consultar

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

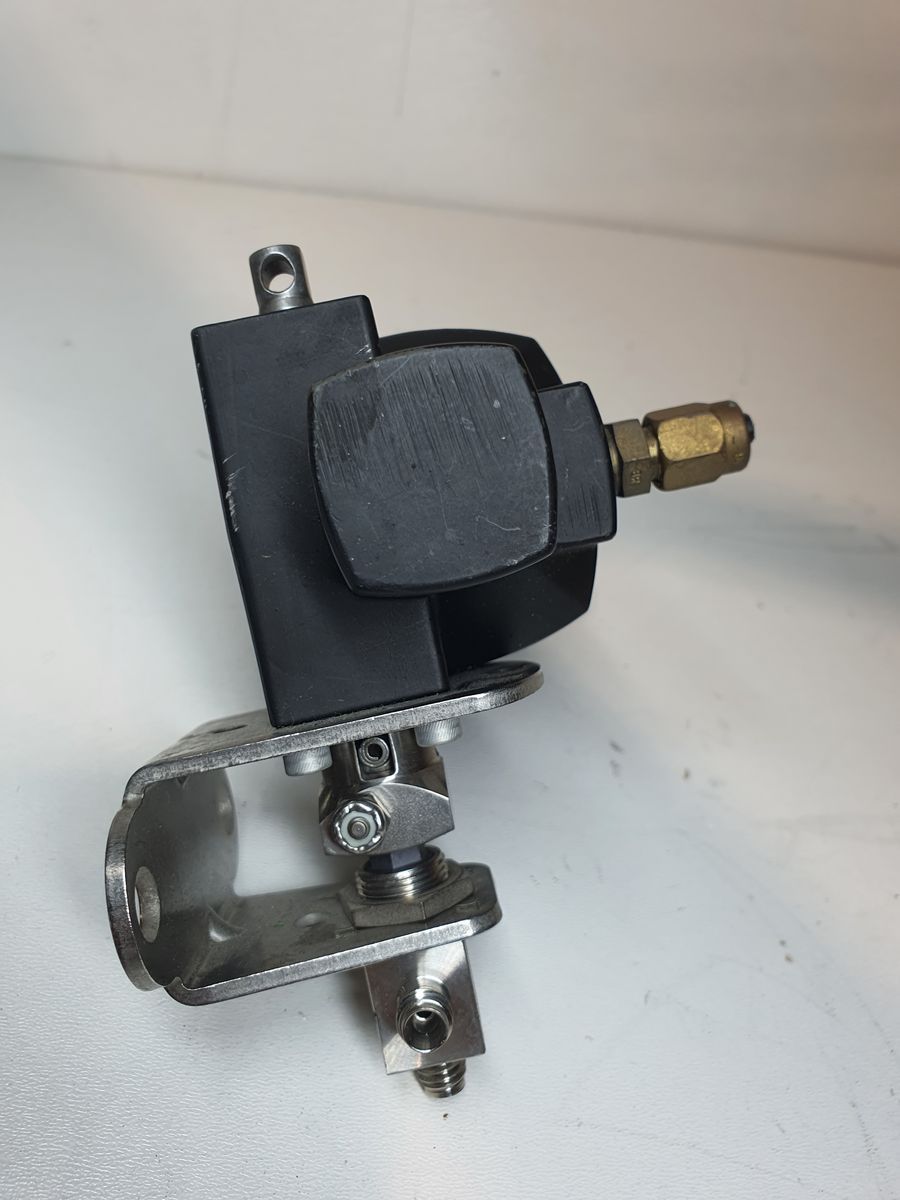

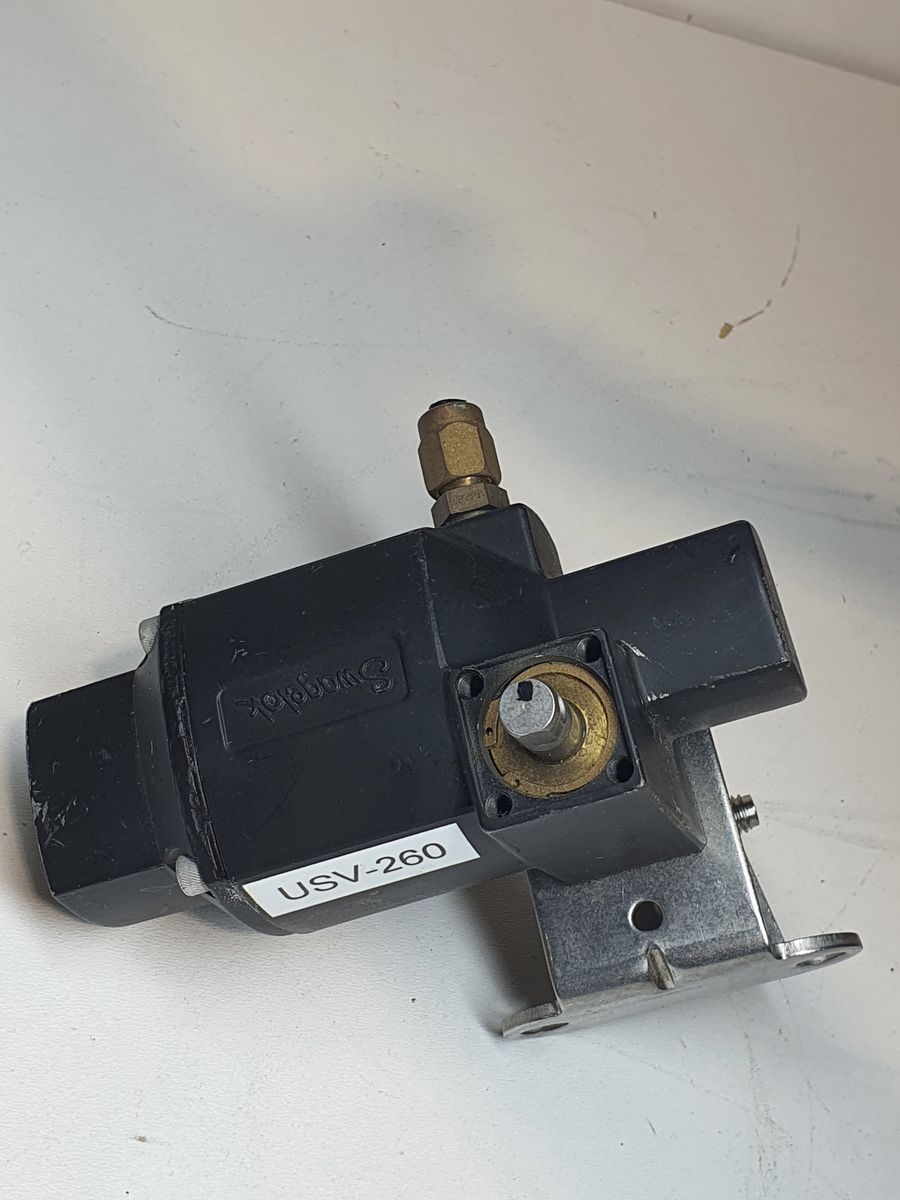

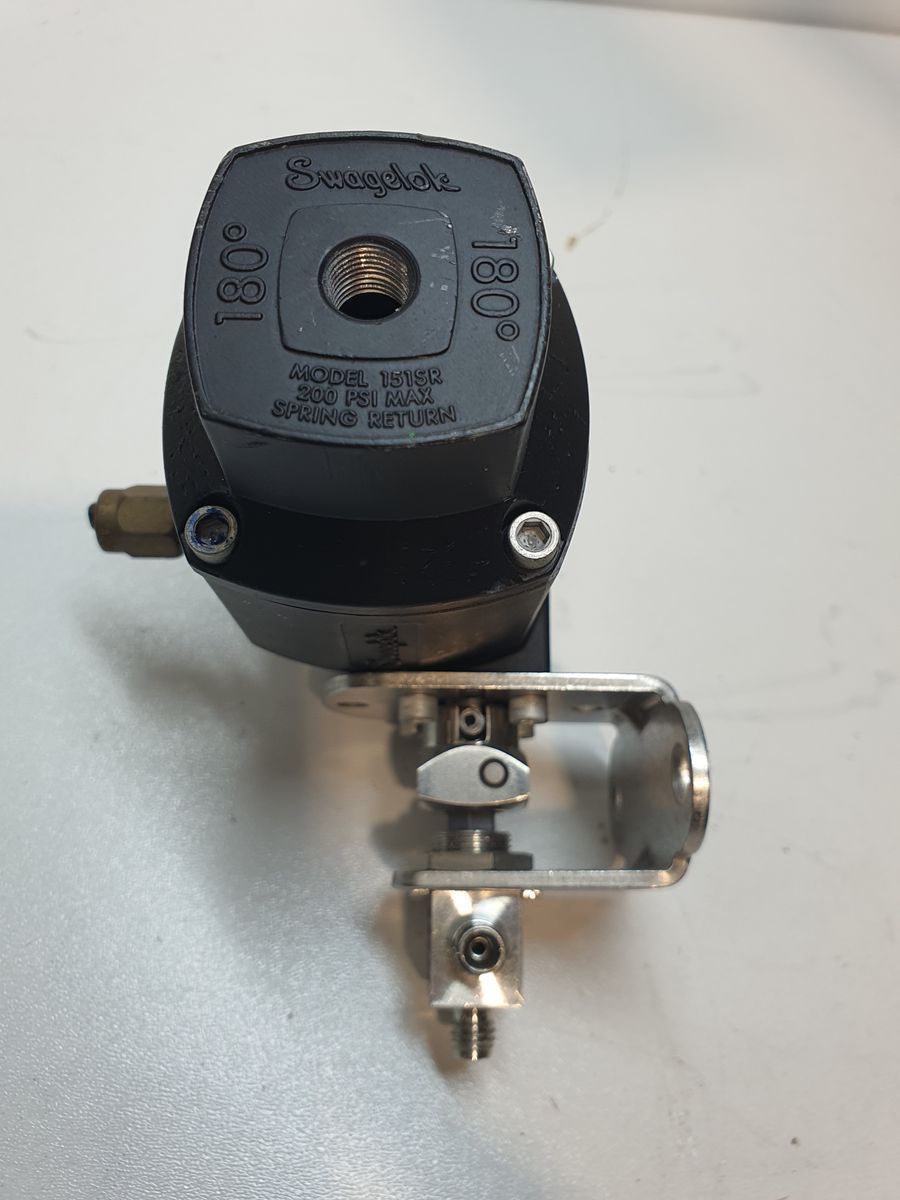

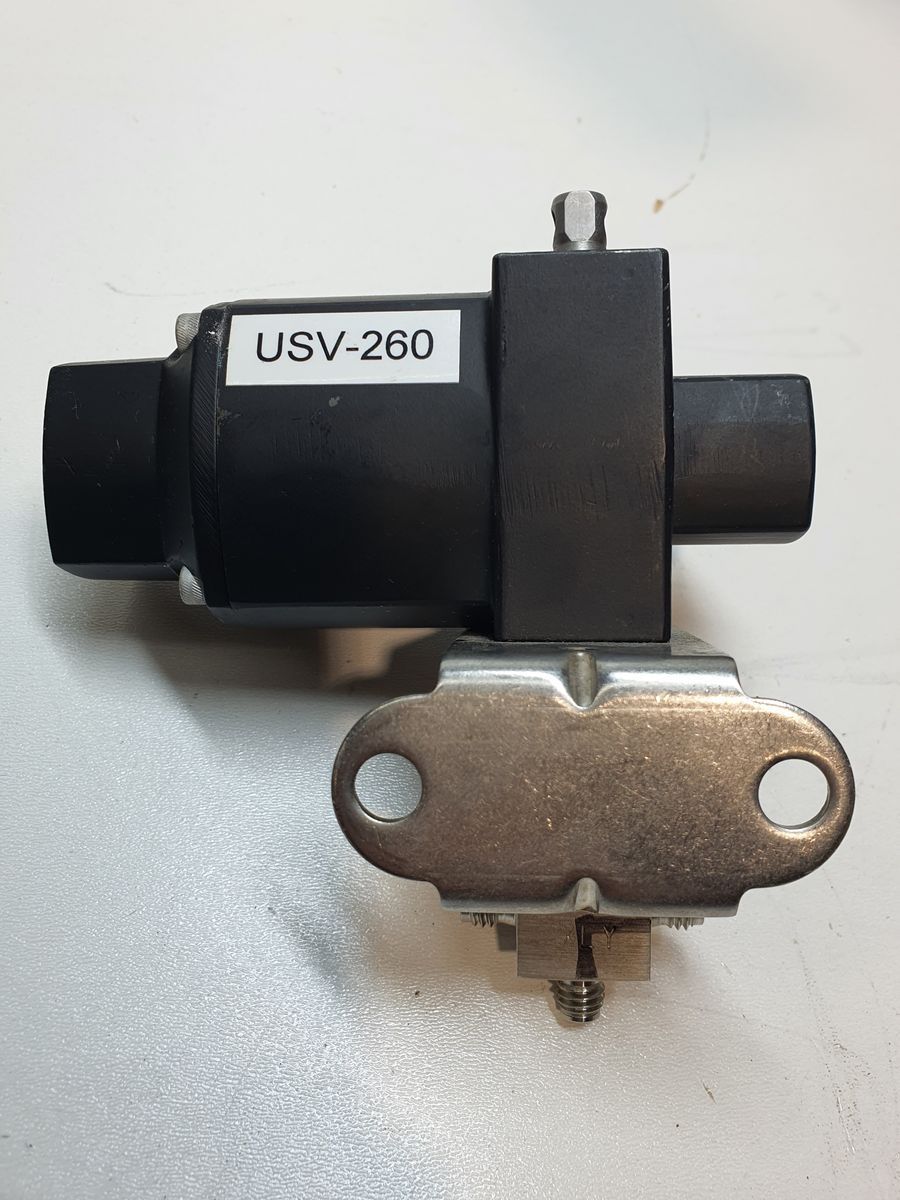

Swagelok Whitey 151 SR Actuator

Category	Parameter
Actuator Type	Pneumatic, spring-return (single-acting)
Rotation Angle	180° (half-turn), suitable for ball and similar valves
Series	151 Series (compact, small-stroke, gear transmission)
Air Displacement	~3.0 in³ (49.2 cm³)
Weight	0.7 kg
Maximum Recommended Air Pressure	200 psi (13.8 bar) – maximum pneumatic supply pressure for the actuator
Operating Medium	Standard compressed air or inert gas
Operating Temperature Range	−20 °F to +200 °F (−28 °C to +93 °C)
Housing	Anodized cast aluminum alloy with black urethane exterior — lightweight yet strong for industrial use
Piston	Cast aluminum alloy — durable and corrosion-resistant for pneumatic cycles
Output Shaft	Hardened stainless steel 416 — high strength for reliable valve stem operation

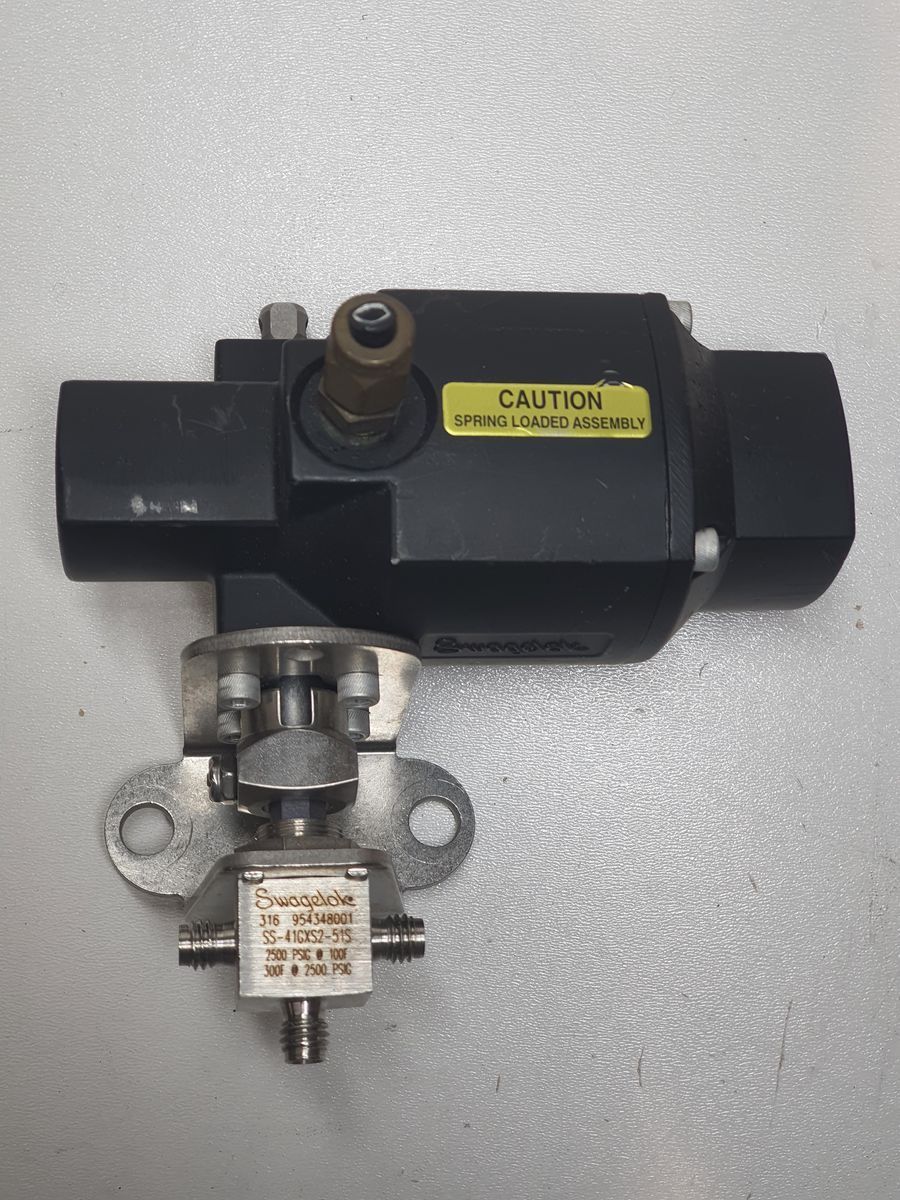

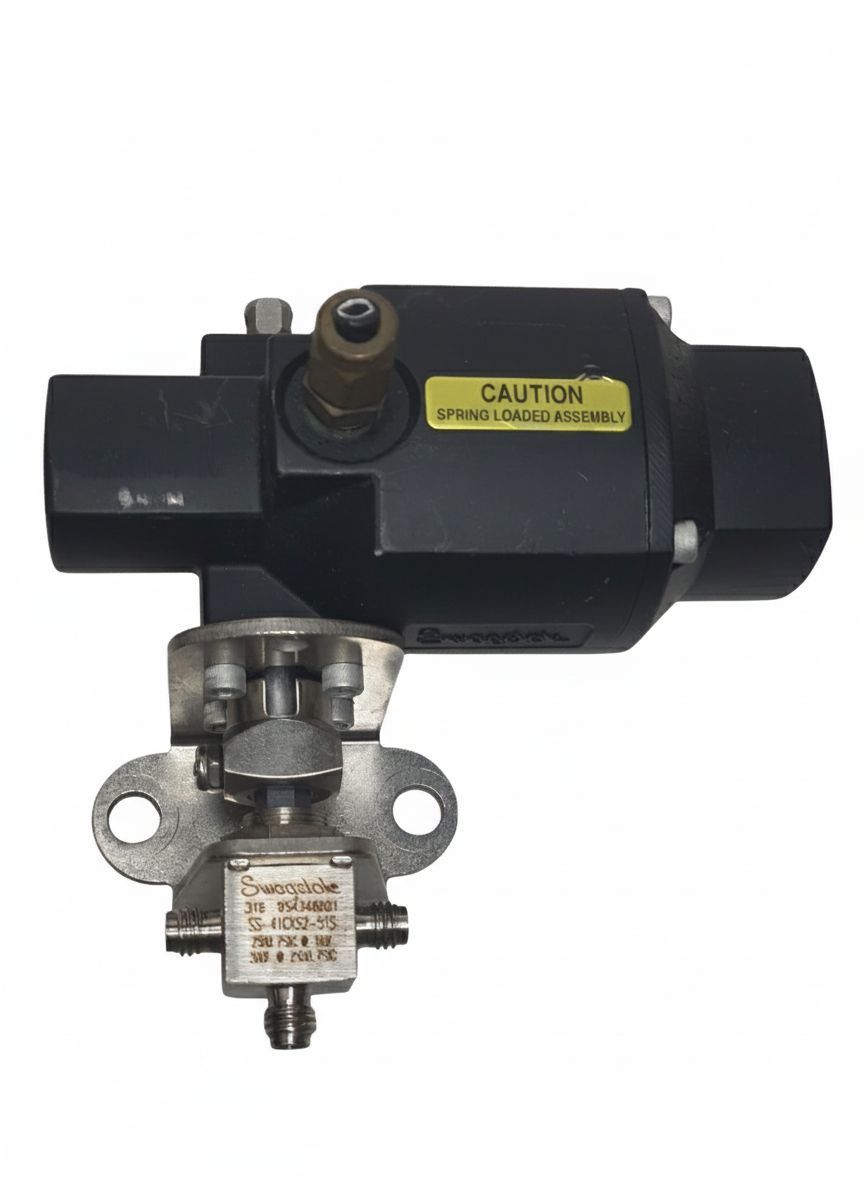

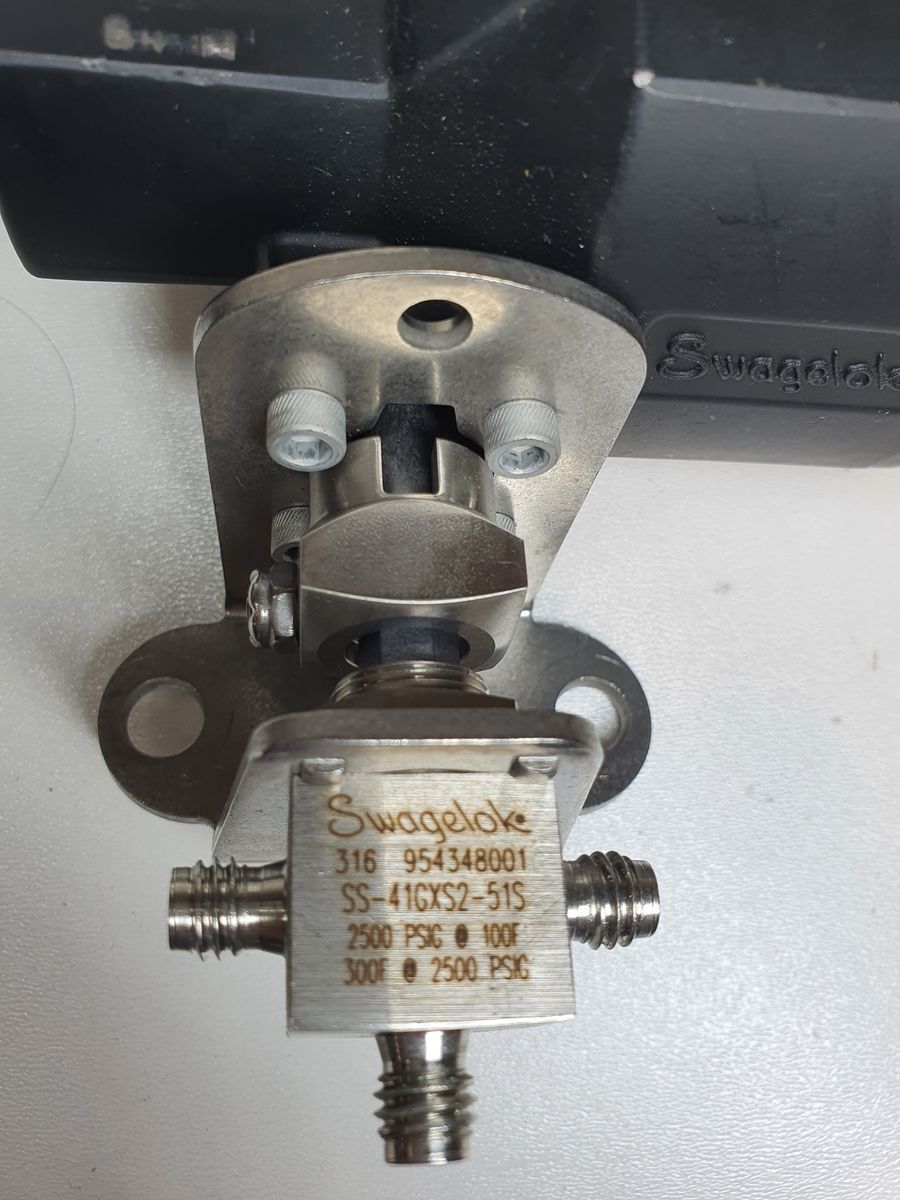

Swagelok Valve Body SS-41GXS2-51S
- Material: 316 stainless steel
- Pressure range: 2500 PSIG
- Temperature range: 100°F - 300°F
